HYSPIM

Hyperspectral Imager

The Hyperspectral imagers are available with many features and with different specifications. Depending on specifications they could be mounted on a Field scanner , Desktop scanner , or mounted on a drone.

HYSPIM

Hyperspectral Imager

The Hyperspectral imagers are available with many features and with different specifications. Depending on specifications they could be mounted on a Field scanner , Desktop scanner , or mounted on a drone.

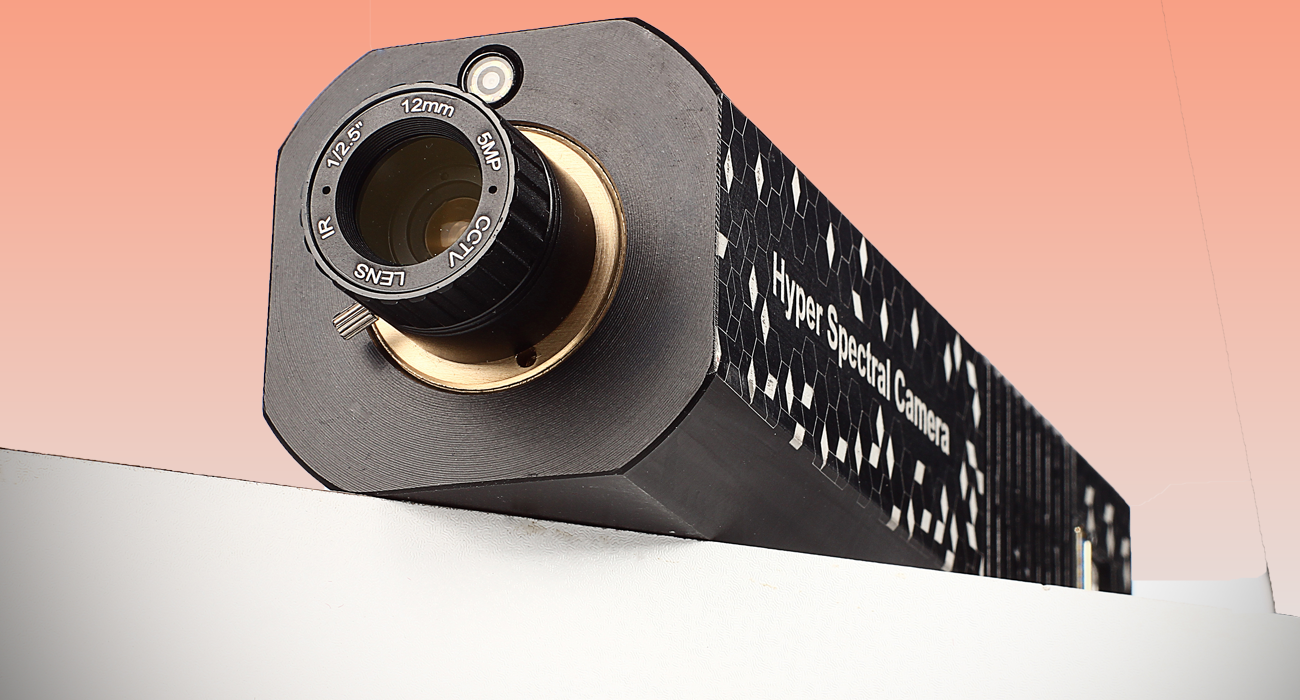

Hyperspectral Camera, HYSPIM :

HYSPIM records the spectrum for each pixel in the image of a sample and using push-broom technique makes a cube data. Two dimensions of the cube data are the spatial information of the sample and the third dimension is the wavelength.

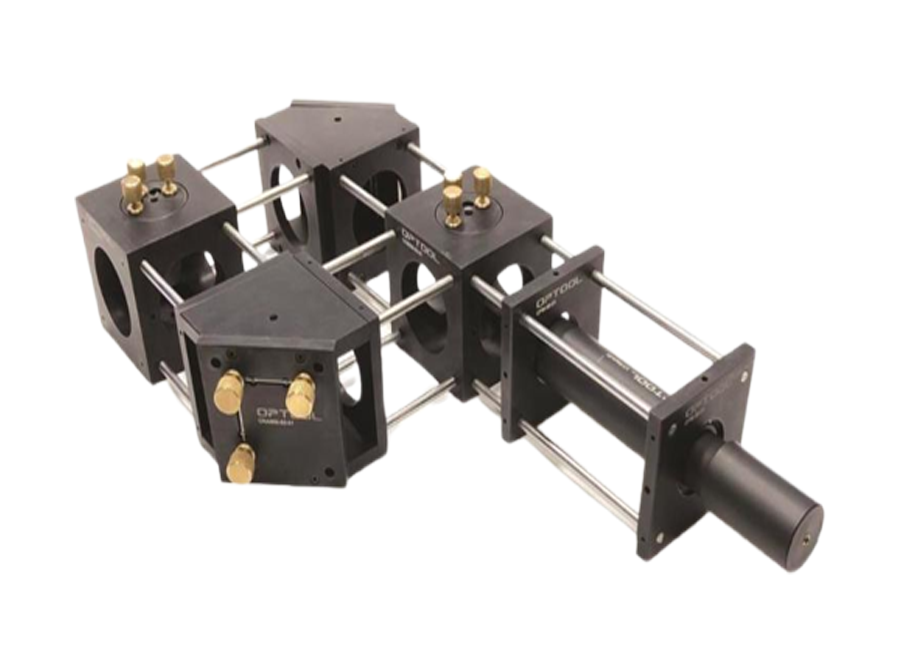

Optics

Precise optical component with very good transmission and coatings

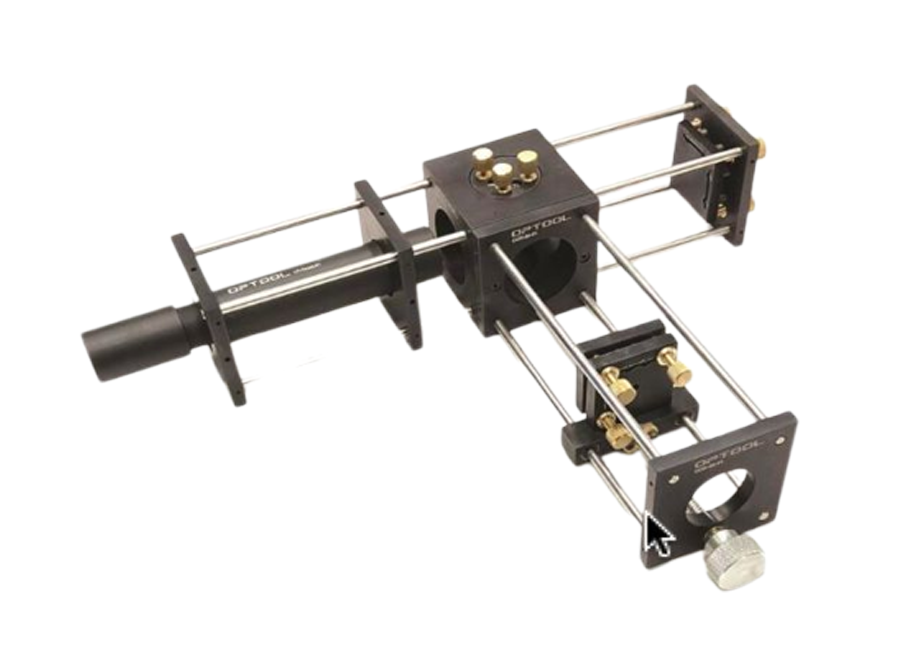

Interface

Very usefull gadjet that conects camera to Desktop scanner

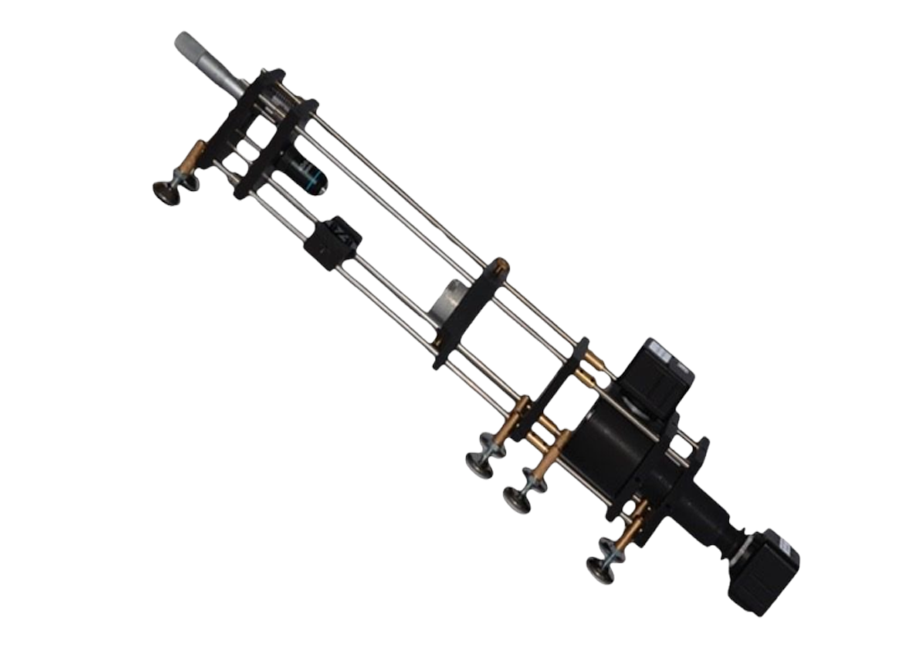

Mechanical

Easy to handle

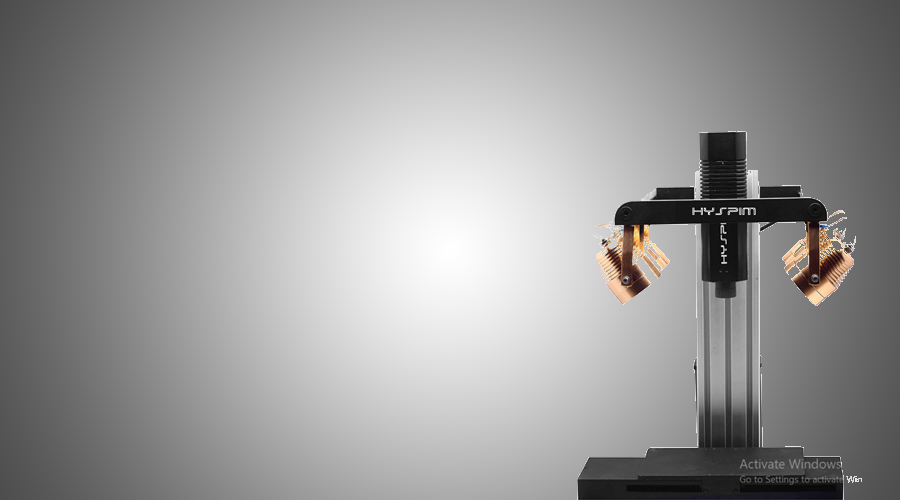

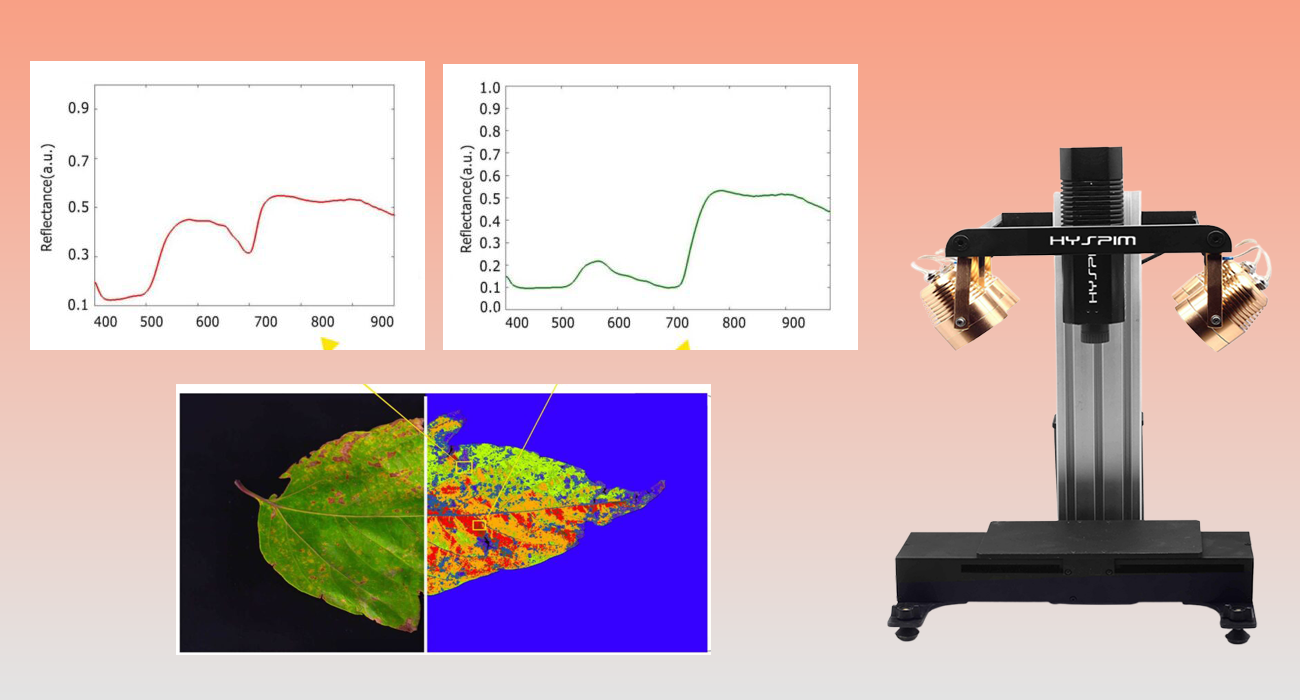

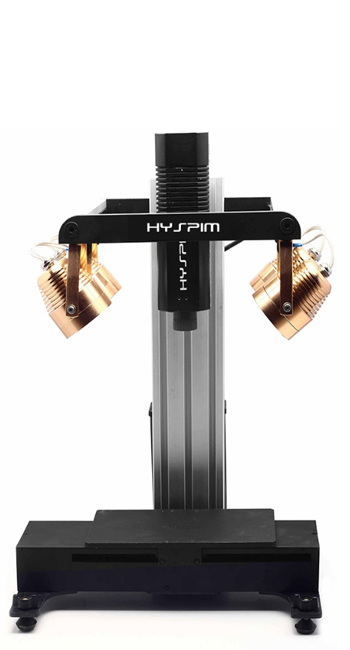

Desktop HYSPIM

A sample is placed on the motorised linear stage and by moving the sample the reflectance spectra of the object are recorded (push-broom technique). The speed and resolution are adjusted by integrated software.

Vertical adjustment

The height of the camera and light sources are adjusted manually that will change the spatial resolution of the system.

Horizintical Movment

For recording a cube data by push-broom technique, the sample is translated using a moving linear stage. A software controls the speed of the motorized stage and speed of the HYSPIM in order to get the requested spatial resolution.

Light sources

4 Halogen lamps are illuminating the sample. A uniform illumination is provided by adjusting the orientation and height of the lamps

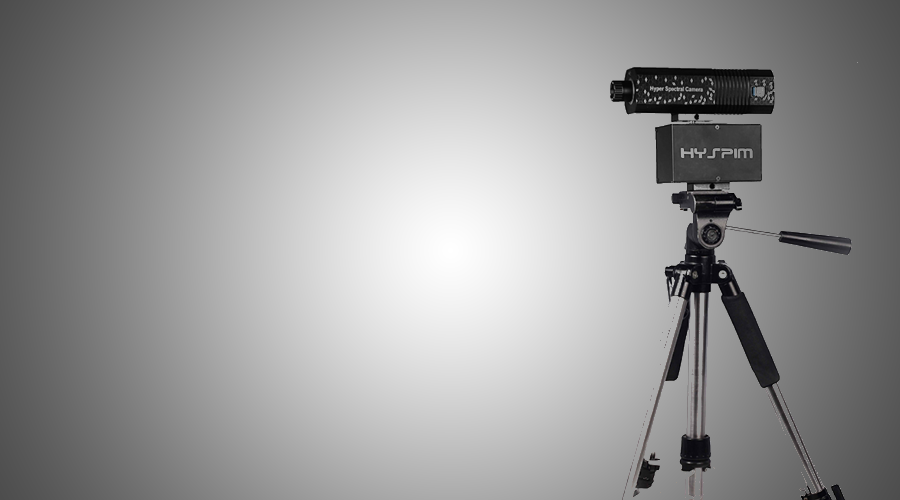

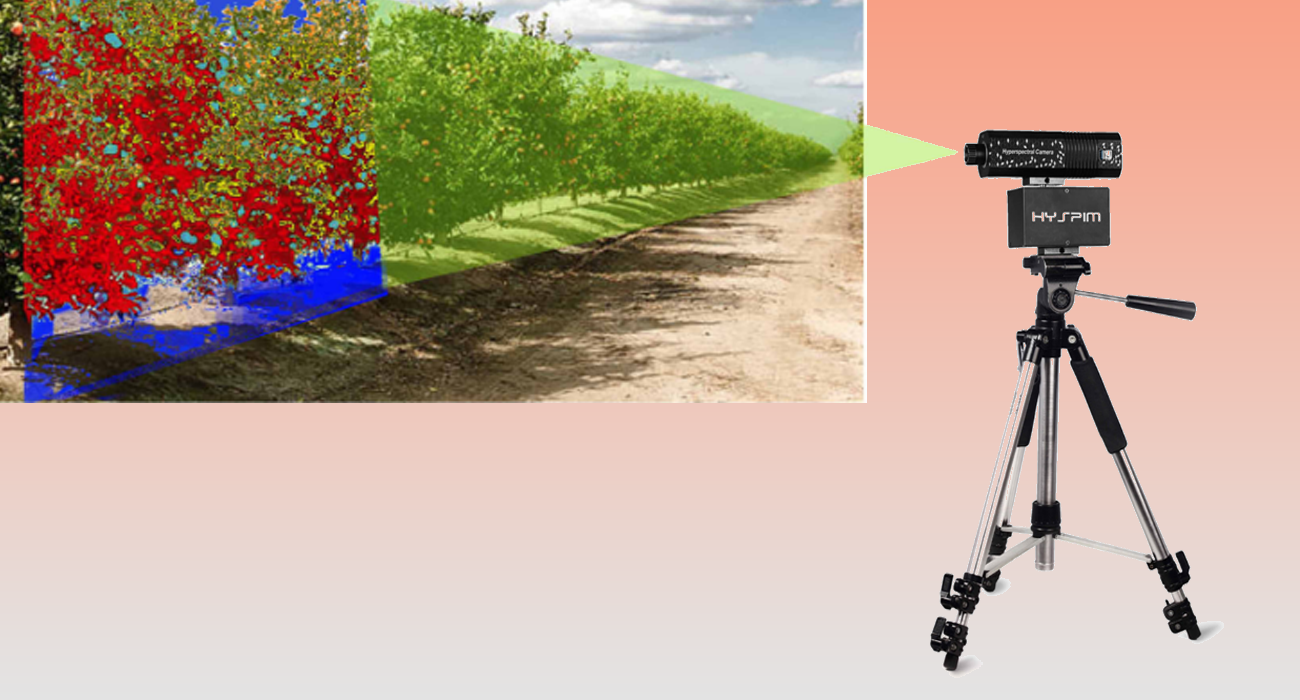

Field HYSPIM

A software controls the angular speed of the stage and speed of the HYSPIM in order to get the requested angular resolution





Adjustment

The Field HYSPIM is mounted on a tripod and its height is adjusted manually.

Angular rotation:

A maximum, 360 degree angular rotation is provided by Field HYSPIM.

Light source

A high-power halogen lamp illuminated the sample for indoor usage. Sunlight may also illuminate the sample for outdoor data recording

Applications

HYSPIM has a wide range of applications, including agriculture, art, and medicine. In agriculture, it is used for vegetation mapping, crop disease detection, stress and yield assessment, and nutrient level analysis. This technology is also valuable in art for material analysis and conservation of artwork. In the medical field, it has been applied to disease detection and food safety inspection. The versatility of HYSPIM makes it a valuable tool across multiple domains







Agriculture

Precision agriculture and smart farming can benefite greatly from the use of hyperspectral imaging technology.

Art

HSI is very useful in the art domain for identifying pigments in paintings

Medical diagnostic

In the medical sector to determine various diseases.
